1. Tensile Strength & Structural Polymer Metrics
Commercial inflatable performance depends directly on the structural mesh density and outer PVC coating thickness of the composite material, dictating tear resistance and air pressure tolerances.
1000D Polyester Mesh & PVC Tarpaulin Coating
- Actionable Insight: Use 0.55mm (18oz) PVC with a 1000D inner polyester base for standard continuous-air bouncers, achieving a balanced tensile rating of ~2700N/5cm. Reserve 0.9mm (30oz) PVC for sealed airtight units or heavy impact areas requiring over 3500N/5cm tensile resistance.
- Business/Consumer Value: Using 0.55mm PVC on main walls reduces structural material costs by up to 25% while staying fully compliant with EN14960 and ASTM F2374 commercial standards.
Puncture & Shearing Force Tolerances
- Actionable Insight: Heavy-gauge 0.9mm PVC withstands up to 450N of direct localized puncture force compared to 280N for 0.55mm PVC, making it essential for high-velocity slide chutes and climbing steps.
- Business/Consumer Value: Targeted installation of 0.9mm material on high-friction points prevents localized structural tears, eliminating up to 80% of emergency field repairs.
2. Weight, Blower Requirements & Handling Logistics
Material thickness directly dictates the total weight of the park modules, impacting labor requirements for daily deployment, transportation costs, and blower air-volume demands.
Weight Ratios & Setup Logistics
- Actionable Insight: A 100m² module built entirely from 0.55mm PVC weighs approximately 650kg, whereas a 0.9mm build reaches ~1050kg. Plan for increased crew sizes or mechanized transport equipment when utilizing heavy-gauge vinyl.
- Business/Consumer Value: Utilizing 0.55mm PVC on zero-impact vertical walls reduces module shipping costs by 30-40% and allows smaller operational crews to handle routine setup and teardown.
Continuous Air Pressure vs. Sealed Airtight Systems
- Actionable Insight: Continuous-air bouncers require 0.55mm PVC combined with dual-stitching to manage airflow permeability. Sealed water structures or airtight obstacles require hot-air welded 0.9mm PVC to hold constant internal pressure without blowers.
- Business/Consumer Value: Matching the right material to the air system avoids over-specifying costly materials on standard dry bouncers, optimizing capital expenditure.
Featured Commercial Inflatable Park Solutions

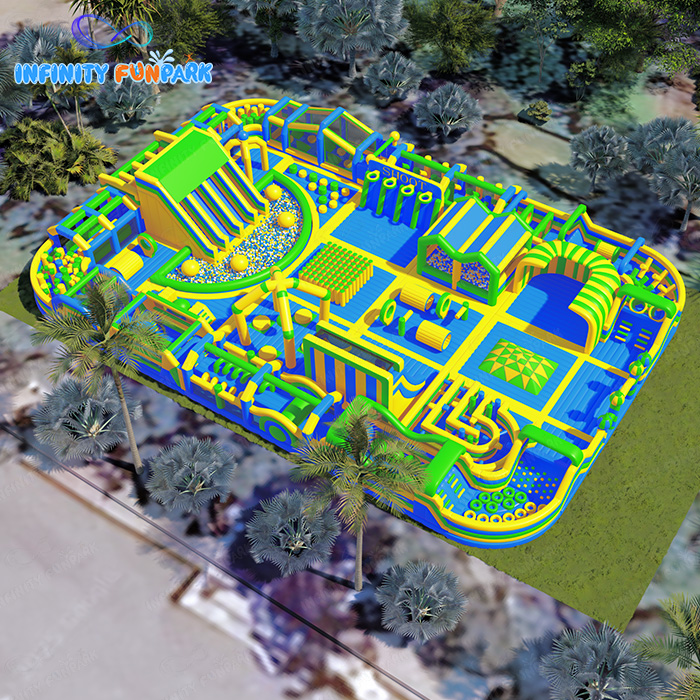

Standardized 600m² commercial park featuring high-durability reinforced PVC construction and high-throughput slide lanes.
Mass-scale commercial theme park engineered with heavy-duty structural PVC for extreme foot traffic and multi-zone entertainment.
3. Hybrid Structural Engineering & Smart Layering
Top-tier commercial manufacturers utilize a hybrid material design, combining 0.55mm structural walls with 0.9mm high-wear overlays to maximize durability without adding excess weight.
High-Friction Wear Area Reinforcement
- Actionable Insight: Specify detachable 0.9mm PVC sheets on slide covers, entry mats, and climbing steps, while retaining 0.55mm PVC for decorative walls and outer perimeter barriers.
- Business/Consumer Value: Removable 0.9mm slide covers allow quick surface replacement when worn down, extending the overall lifecycle of the primary inflatable structure from 3 to 5+ years.
Seam Construction & Baffle Engineering
- Actionable Insight: Ensure 0.55mm internal baffles are reinforced with inner webbing, while 0.9mm outer stress points utilize quadruple-stitching with anti-rot nylon thread to prevent air leaks.
- Business/Consumer Value: Balanced baffle and seam engineering distributes player impact evenly, preventing structural distortion under peak commercial crowd loads.
4. Total Cost of Ownership (TCO) & Life-Cycle ROI
Evaluating initial procurement costs against maintenance expense and overall service life reveals the true financial return of material selection.
Procurement vs. Longevity Metrics
- Actionable Insight: An all-0.55mm park costs 15-20% less initially but has a typical service life of 2-3 years under heavy daily commercial use. A hybrid 0.55mm/0.9mm design increases lifespan to 4-6 years with minimal extra weight.
- Business/Consumer Value: Hybrid material allocation generates the highest long-term ROI, minimizing operational downtime while optimizing initial capital expenditure.
UV Stability & Environmental Degradation
- Actionable Insight: Select commercial-grade PVC tarpaulin featuring UV-inhibitor coatings rated for 8000+ hours of sunlight exposure to prevent material stiffening and micro-cracking over time.
- Business/Consumer Value: UV-treated PVC preserves color brightness and elasticity, maintaining resale value and safety compliance over multiple operating seasons.
High-Performance Modular Theme Parks
Compact commercial bouncer unit utilizing optimized high-wear vinyl reinforcement across climbing surfaces and slide exits.
High-capacity commercial footprint designed with modular heavy-duty PVC wall partitions and reinforced jumping bases.
Expert Industry Takeaway
For optimal commercial ROI, avoid specifying a single PVC thickness across an entire inflatable park. The most successful operators utilize a hybrid material spec: 0.55mm PVC (18oz) for general structural walls and lower-wear areas, paired with 0.9mm PVC (30oz) for high-friction covers, entry points, and climbing steps. This strategy minimizes setup weight while maximizing structural longevity.
